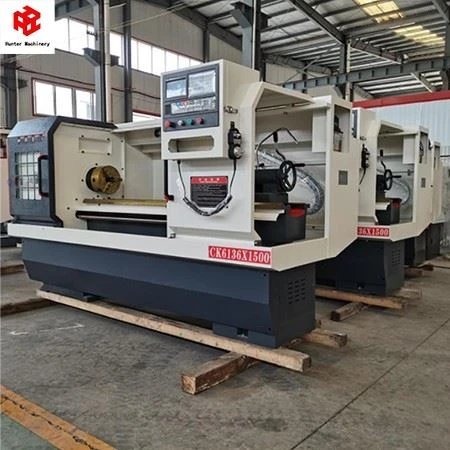

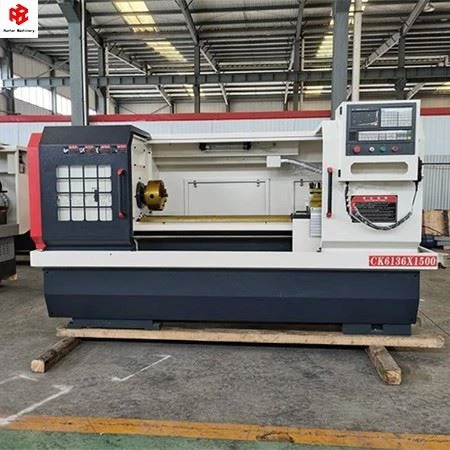

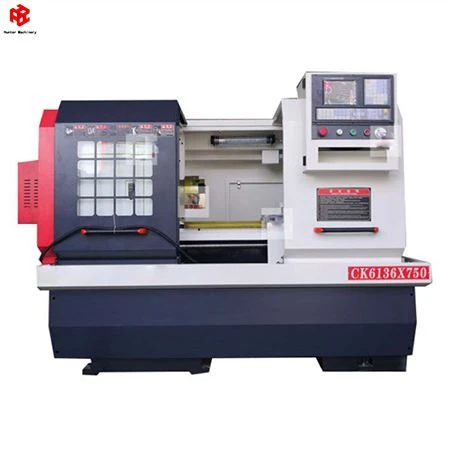

CK6136 Kab rov tav CNC tshuab dhos
Cov cuab yeej siv tshuab no tuaj yeem ua tiav cov txheej txheem ntawm cylindrical nto, conical nto, arc nto, kawg nto, grooving, chamfering thiab lwm yam txheej txheem rau ntau yam shafts thiab chucks, thiab tuaj yeem ua cov xov ncaj, taper xov thiab lwm yam xov, tshwj xeeb tshaj yog rau loj ntau lawm ntawm qhov chaw nyob rau hauv dav machinery manufacturing kev lag luam, tshwj xeeb tshaj yog rau complex thiab high-precision qhov chaw, thiab kuj yog haum rau cov cuab yeej tsim kev lag luam thiab kev kawm ntawv thiab kev qhia departments.
Cov kev taw qhia rail ntawm lub tshuab cuab yeej yog hardened thiab finely av los ntawm lub zaus, nrog zoo hnav tsis kam thiab siab precision;
Lub ntsiab ncej txais ib leeg-spindle zaus hloov dua siab tshiab thiab hloov ceev; ob lub shafts thiab ob lub zog zaus hloov pauv thiab hloov ceev;
Lub tshuab cuab yeej yog nruab nrog lub tshuab lubrication tsis siv neeg, uas tuaj yeem txo qhov cuam tshuam ntawm thermal hloov thiab xyuas kom meej machining raug;
Lub tshuab cuab yeej tuaj yeem nruab nrog CNC kev ua haujlwm xws li Guangshu, Siemens, thiab Fanuc, uas muaj kev tswj xyuas tau zoo;
Cov khoom siv tshwj xeeb xws li pneumatic chucks thiab hydraulic chucks tuaj yeem ntxiv raws li cov neeg siv khoom xav tau.
| Specifications | 单位 | TIAB SA 6130 | TIAB SA 6140 |
| Max. viav vias saum txaj | mm | 300 | 400 |
| Max. viav vias hla hla swb | mm | 100 | 240 |
| Max.processing ntev | mm | chuck 卡盘200 / 夹头chuck taub hau 320 | chuck 盘420/680 |
| X / Z axis taug kev | mm | 300/350 | X:280Z:550/750 |
| Spindle qhov ntswg | A2-5 | A2-6/（A2-8可选） | |
| Spindle bore | mm | 48 | 48/82 |
| Bar muaj peev xwm | mm | 40 | 40/65 |
| Max. spindle lus | rpm ua | 2500 | 150-2000/150-1800 |
| Chuck loj | mm | 160 | 200/250 |
| Spindle lub cev muaj zog | kW | 4 | 5.5/7.5（可选） |
| X / Z axis repeatability | mm | ±0.005 | ±0.005 |
| X / Z axis pub lub cev muaj zog torque | N.m | X:4Z:4 | X:4Z:6 |
| X/Z ceev traverse | m/min | X:6Z:8 | X:6 Z:8 |
| Tailstock quill dia | mm | D52 | 中60 |
| Quill traverse | mm | 90 | 100 |
| Quill taper | # | MT4 | MT4 |
| Turret hom | 4工位电动刀架 | 4工位电动刀架 | |
| Txiav cov cuab yeej loj | mm | 20×20 | 20×20 |
| Txoj kev qhia hom | 双山 | 双山 | |
| Tag nrho lub zog muaj peev xwm | KVA | 7 | 11 |
| Tshuab Dimension (LxWxH) | mm | 1600×1100×1650 | 2200×1160×1620 |
| Net.weight (txog) | kg | 950 | 1800 |
