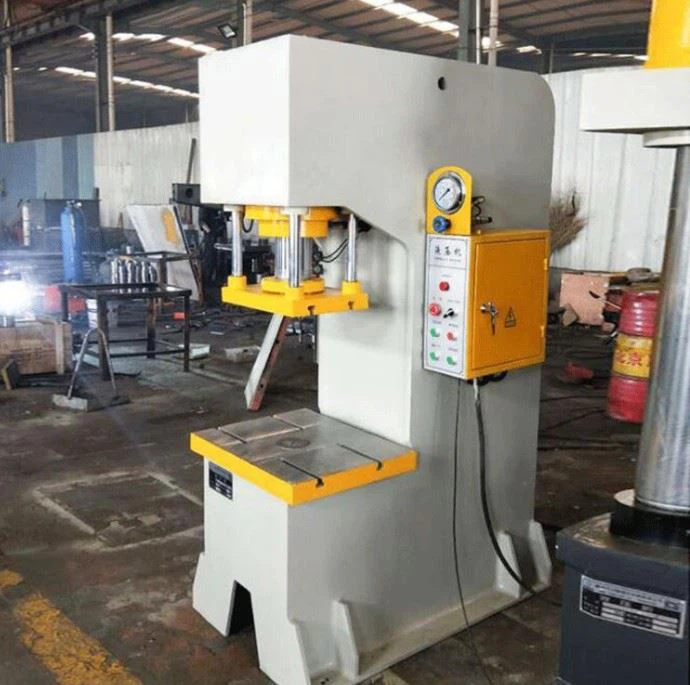

Tib qho system sib txuas ua ke xovxwm hydraulic
Nta:

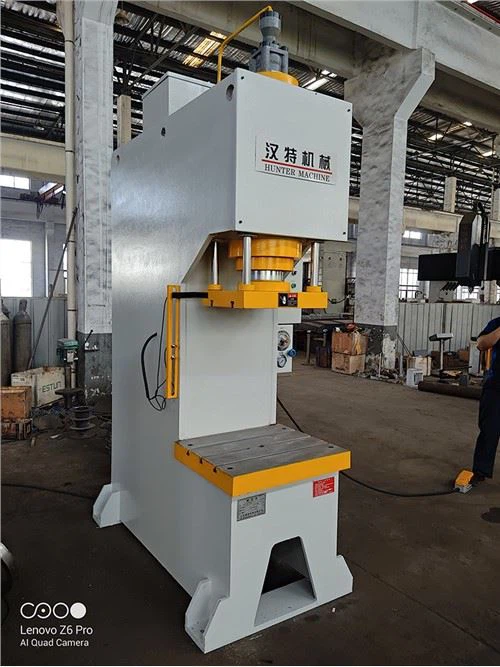

Txhua daim hlau tau txuas nrog CO2 kom ntseeg tau tias lub tshuab lub cev yuav tsis hloov pauv. Lub tshuab muaj lub zog siab, ruaj khov raug thiab tuav mus ntev. YQ41 ib leeg-npab hydraulic xovxwm yog nruab nrog lub tshuab hydraulic tiv thaiv ntau dhau, uas siv qhov chaw peb tog kom nthuav dav ua haujlwm. Cov cuab yeej no siv Kev sib txuas ntawm txhais tes thiab ko taw, kev ua haujlwm yooj yim, kev siv zog tsawg thiab suab nrov tsawg. Cov cuab yeej tuaj yeem kho raws li tus neeg siv yuav tsum tau ua. Ib leeg-npab hydraulic xovxwm yog qhov tsim nyog rau ntu ntu, kho cov ntaub ntawv, nias ntawm qhov chaw bushing, ntawv hlau dabtsi yog khoov, embossing, textile machinery, shafts, bearings, tshuab ntxhua khaub ncaws, tsheb, cua txias motors, khoom siv hluav taws xob thiab ntau lwm yam lag luam thiab teb .20-tuj ib-kab hydraulic xovxwm Ib leeg-npab xovxwm yog tsim rau nias txheej txheem, xws li khoov, flanging, extrusion, sib sau, kho, nias thiab lwm yam. Lub tshuab no muaj kev ywj pheej tus qauv thiab cov tshuab hluav taws xob, thiab txais khawm tswj hauv nruab nrab, uas tuaj yeem paub txog kev ua haujlwm ib nrab thiab tsis siv neeg. Kev ua haujlwm siab, nias nrawm thiab ntau yam mob hlab ntsha tawg ntawm lub tshuab no tuaj yeem hloov kho raws li qhov xav tau hauv thaj tsam tshwj xeeb raws li xav tau. Thiab nws tuaj yeem ua tiav ob hom txheej txheem ntawm kev nias-nias tsim thiab tsau-stroke txoj kev ua. Hauv kev ua haujlwm ib nrab tsis siv neeg, ob qho txheej txheem txheej txheem muaj tom qab nias siab-tuav ncua thiab rov ua haujlwm tsis siv neeg.
Tib kem xovxwm ua haujlwm
1. Tus neeg teb xov tooj ntawm hydraulic xovxwm yuav tsum raug cob qhia kom txawj siv cov cuab yeej ua tau zoo thiab ua haujlwm thev naus laus zis ua ntej lawv tuaj yeem ua haujlwm ywj pheej.
2. Ua ntej ua haujlwm, ntxuav txhua yam khib nyiab ntawm cov pwm thiab so tawm cov av ntawm cov xovxwm hydraulic.
3. Cov xovxwm hydraulic yuav tsum tau teeb tsa thaum lub zog tawm. Nws yog txwv tsis pub sib tsoo nrog lub khawm pib, tuav thiab pedal ntawm tus taw hloov.
4. Tom qab txhim kho cov pwm sab saud thiab qis dua, kho qhov sib txawv ntawm cov pwm, thiab tsis txhob tso ib sab kom deb ntawm qhov chaw. Tom qab lees paub tias cov pwm raug kho, sim ua kom siab dua.
5. Ua ntej hydraulic xovxwm ua haujlwm, pib cov khoom siv tsis ua haujlwm rau 5 feeb. Nyob rau tib lub sijhawm, txheeb xyuas seb qib roj ntawm lub tank puas txaus, seb lub suab ntawm lub twj tso kua mis yog qhov ib txwm muaj, txawm hais tias chav tsev hydraulic, cov kav dej, cov pob qij txha, thiab pistons tau xau. Shenzhen hydraulic xovxwm TM series txhuas
6. Pib cov cuab yeej los ntsuas lub siab, xyuas seb lub siab mus txog qhov ua haujlwm siab, puas yog cov cuab yeej txav tau ib txwm thiab ntseeg tau, thiab seb puas muaj qhov to.
7. Kho qhov ua haujlwm siab, tab sis nws yuav tsum tsis pub ntau tshaj 90% ntawm qhov ntsuas siab ntawm cov cuab yeej, ntsuas ib qho haujlwm, thiab tom qab ntawd tsim tom qab dhau qhov kev tshuaj xyuas.
8. Rau cov khoom sib txawv ntawm cov tshuab hydraulic thiab cov khoom ua haujlwm, thaum nias thiab kho, lub zog ua haujlwm ntawm cov xovxwm thiab tus lej thiab lub sijhawm ntawm kev nias thiab tuav lub siab yuav tsum tau hloov kho txhua lub sijhawm, yog li tsis ua kom puas pwm thiab ua haujlwm.
9. Thaum lub phaj xovxwm ntawm lub tshuab lub cev swb nce thiab nqis, nws raug txwv tsis pub ncua koj txhais tes thiab lub taub hau mus rau hauv lub phaj xovxwm thiab ua haujlwm ib nrab ntawm cov pwm.
10. Nws raug txwv tsis pub ua haujlwm xws li cuam tshuam, ncab, vuam thiab txiav, khoov thiab sib ntswg thaum siv lub zog.
11. Cov pa luam yeeb, vuam siv, hluav taws kub, thiab cov khoom tawg thiab tawg tsis tau tso cai khaws cia ib puag ncig cov xovxwm hydraulic. Siv kev tiv thaiv hluav taws.
12. Tom qab cov xovxwm hydraulic ua tiav, lub zog xa hluav taws xob yuav tsum raug txiav tawm, cov pas nrig hydraulic ntawm cov xovxwm yuav tsum tau so kom huv, thiab ntxiv cov roj nplua nyeem, thiab cov pwm thiab cov khoom ua haujlwm yuav tsum tau muab ntxuav thiab tso kom huv.
Khoom tsis:
| Kev tsis ntawm ib-kab hydraulic xovxwm | YH41-20T | YH41-40T | YH41-60T | YH41-100T | YH41-200T | YH41-315T | ||
| Nominal siab (KN) | 200 | 400 | 600 | 1000 | 2000 | 3150 | ||
| Ua haujlwm siab ua kua (Mpa) | 25 | 26 | 25 | 26 | 25 | 25 | ||
| Lub caj pas tob (hli) | 200 | 200 | 260 | 300 | 300 | 360 | ||
| Indenter stroke (hli) | 260 | 260 | 260 | 400 | 360 | 600 | ||
| Ua haujlwm ceev (hli/s) | 15 | 15 | 15 | 6-15 | 7-18 | 7-18 | ||
| Rov qab ceev (hli/s) | 25 | 22 | 22 | 25 | 40 | 40 | ||
| Qhov siab tshaj plaws ntawm qhov swb mus rau lub rooj ua haujlwm | Nias haum | 500 | 500 | 500 | 700 | 700 | 1000 | |
| Kho | 360 | 360 | 360 | 500 | 500 | 800 | ||
| Lub rooj ua haujlwm loj | Nias haum | Ua ntej thiab tom qab | 400 | 400 | 500 | 600 | 600 | 800 |
| sab laug thiab sab xis | 500 | 500 | 600 | 700 | 700 | 1000 | ||
| Kho | Ua ntej thiab tom qab | 400 | 400 | 600 | 600 | 800 | 800 | |
| sab laug thiab sab xis | 600 | 600 | 800 | 800 | 1000 | 1500 | ||
| Lub zog tsav (KW) | 2.2 | 3 | 4 | 5.5 | 15 | 22 | ||
Ua ntau yam:
1. Cov khoom seem, kho cov ntaub ntawv thiab nias haum ntawm lub tes tsho ntu;
2. Cov txheej txheem xws li ncab, xuas nrig ntaus, khoov, flanging, kho, nias, txias thiab kub extrusion ntawm cov khoom siv hlau;
3. Nias molding ntawm cov khoom hmoov, cov khoom yas thiab cov khoom siv rwb thaiv tsev.
4. Nyob rau tib lub sijhawm, nws tseem tuaj yeem ua tiav qhov khoov, embossing, blanking, kho, zes, thiab ncab cov yooj yim ntawm cov ntawv seem.
Teeb meem tshwm sim:
Koj puas yog cov chaw tsim khoom?
Yog, lub tuam txhab muaj ntau yam cuab yeej tsim khoom siab thiab khoom siv tshuaj xyuas, ua tiav pab pawg tsim khoom, ntau xyoo dhau los ntawm kev tsim khoom, kom tau raws li koj xav tau kev xaj khoom, tshwj xeeb hauv kev tsim khoom ntawm ib leeg-kab hydraulic xovxwm, plaub-kab hydraulic xovxwm , hmoov ua hydraulic xovxwm, ncab kev tsim cov xovxwm hydraulic, ntau yam Ntau yam ntawm nws pib qhov chaw nias, tshuab uas tuaj yeem ua cov hlau, yas, roj hmab, ntoo, hmoov thiab lwm yam khoom lag luam.
Yuav ua li cas rau nruab lub tshuab?
Txhawm rau muab cov neeg siv khoom nrog ntau yam kev txhawb nqa txuj ci, peb tseem tuaj yeem xa cov kws tshaj lij txawv teb chaws los teeb tsa thiab qhia rau peb cov neeg siv khoom.
Yuav ua li cas txog tom qab muag?
Lub tuam txhab muab kev pabcuam 24-teev tomqab muag, tomqab muag kev pabcuam xa ntawv: huntermachinery@gamil.com
