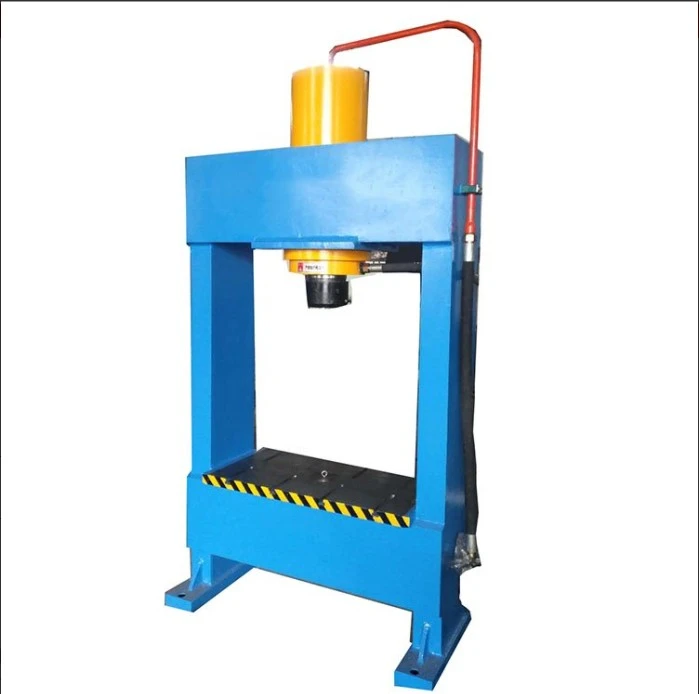

YM-60T Customizable gantry thav duab hydraulic xovxwm
Nta:
1. Lub tshuab txais yuav ib qho qauv hlau txhua yam, uas tau kho nrog kev laus kev laus kom txo cov neeg kho tshuab deformation. Lub thav duab tau tsim los ntawm kev tsim cov khoom tsim nrog siab nruj thiab siab tshaj. Lub rooj gantry hydraulic tshuab tuaj yeem txav nce thiab nqis, uas nthuav dav qhib thiab kaw qhov siab ntawm lub tshuab thiab ua kom yooj yim dua rau siv. Nws yog tsim los ntawm lub tog raj kheej tseem ceeb, hydraulic zog system thiab hluav taws xob system. Lub rooj ua haujlwm tau txuas nrog cov phaj hlau zoo kom ntseeg tau kev ntseeg tau thiab ua haujlwm ntev
2. Lub chaw nres tsheb hydraulic yog tsim los ntawm lub tank roj, lub tshuab tso siab, lub tshuab hluav taws xob, lub thim rov qab, thiab lwm yam. Cov roj tank tau txuas nrog cov hlau hlau. Cov roj tank tau txais lub kaw roj kaw nrog lub qhov tso roj, uas ua rau nws yooj yim los ntxuav thiab hloov roj.
3. Cov txheej txheem hydraulic muaj kev ntseeg tau ruaj khov thiab tsis muaj xau. Lub raj xa dej loj tau txais kev txuas flange thiab cov raj xa dej tau nruab nrog ntsuas kev tiv thaiv kev co.
Khoom zoo:
1. Siv cov qauv tsim qauv, zoo rigidity
2. Cov slider tau nruab nrog cov cuab yeej coj los txhim kho qhov raug ntawm cov xovxwm
3. Kev ywj pheej ywj pheej hydraulic thiab hluav taws xob tswj qhov system, nruab nrab tswj nrog cov nyees khawm
4. Nws tuaj yeem paub ob txoj hauv kev ua haujlwm ntawm kev ua haujlwm tsis tu ncua thiab mob hlab ntsha tawg, nrog rau kev ua haujlwm ntawm kev tuav siab ncua thiab rov qab tuaj.
5. Nws muaj ob hom kev ua haujlwm: kev hloov kho thiab ib zaug nrog ob txhais tes
6. Kev ua haujlwm siab thiab mob stroke tuaj yeem hloov kho nyob rau hauv qhov tshwj xeeb raws li cov txheej txheem xav tau
Khoom tsis:
| YM series gantry thav duab hydraulic xovxwm | YM-20T | YM-40T | YM-60T | YM-80T | YM-100T |
| Ua kua siab (MPa) | 18 | 23 | 30 | 31.5 | 31.5 |
| Stroke (hli) | 200 | 200 | 200 | 240~300 | 240 |
| Ntev ntev ntev (hli) | 420 | 520 | 520 | 520~720 | 520 |
| Worktable loj (hli) | 360*400 | 400*460 | 400*460 | 500*450 | 500*500 |
| Lub zog tsav (KW) | 2.2~3 | 3~5.5 | 3~5.5 | 5.5 | 5.5 |
| Roj twj tso kua mis hloov (ml/r) | 6~10 | 5~10 | 5~10 | 10~25 | 10~25 |
| Downward ceev (hli/s) | 12~21 | 6.5~14 | 6~12 | 9~23 | 7.5~19 |
| Rov qab ceev (hli/s) | 19~32 | 9.5~19 | 8~16 | 13~34 | 10~25 |
| Net nyhav (KG) | 240 | 370 | 380 | 880 | 1200 |
Cov teb siv tau:
Cov koob ntawm cov xovxwm hydraulic no feem ntau yog siv rau kev kho ntawm cov khoom seem thiab cov ntaub ntawv thiab nias ntawm lub tes tsho qhov chaw. Nyob rau tib lub sijhawm, nws tuaj yeem ua tiav qhov khoov, embossing, overprinting thiab lwm yam txheej txheem ntawm cov ntawv hlau. Nws tuaj yeem siv hauv kev lag luam tsheb thiab kev tsim khoom lag luam. Nws tuaj yeem ntsuas lub hauv ntej qag, ntsuas qhov ua haujlwm tsis zoo, tshem tawm thiab tshem tawm lub tog raj kheej kheej kheej, hloov lub caij nplooj ntoo hlav diaphragm ntawm lub tsheb clutch, disassemble thiab tshem tawm ntau yam sib txuam, nias-haum piston pins thiab ntau tus pin tes tsho Tos.
Teeb meem tshwm sim:
Koj puas yog cov chaw tsim khoom?
Yog, lub tuam txhab muaj ntau yam cuab yeej tsim khoom siab thiab khoom siv tshuaj xyuas, ua tiav pab pawg tsim khoom, thiab ntau xyoo ntawm kev tsim khoom kom tau raws li koj xav tau kev xaj khoom.
Yuav ua li cas rau nruab lub tshuab?
Txhawm rau muab cov neeg siv khoom nrog ntau yam kev txhawb nqa txuj ci, peb tseem tuaj yeem xa cov kws tshaj lij txawv teb chaws los teeb tsa thiab qhia rau peb cov neeg siv khoom.
Yuav ua li cas txog tom qab muag?
Lub tuam txhab muab kev pabcuam 24-teev tomqab muag, tomqab muag kev pabcuam xa ntawv: huntermachinery@gamil.com
